Research Syringe Pumps
|
|
NE-300 "Just Infusion"™ Syringe Pump
"Just the features that you want, and none that you don't want to pay for."
|
Features:
- Holds small or big syringes up to 60 mL
- Pump continuously until you stop the pump
- Infusion rate can be changed while pumping
- Remembers previous settings on power up
- Power failure mode allows pump to continue pumping after a reset
- Syringe purge mode
- Displays total volume dispensed in mL or µL units
- Maximum pumping rate of 1500 mL/hr with a 60 mL syringe
- Precise reproducible flow rates
- Selectable infusion rates units: mL/hr, µL/hr, mL/min, µL/min
- Pictured Syringe is for Demonstration purposes only
"Infuses Only!"
- Does not withdraw, volume target, or have computer interface
- Just the features that you want to pay for
|
Click to Enlarge |
|
*** Not for clinical use on humans ***
|
|
|
|
|

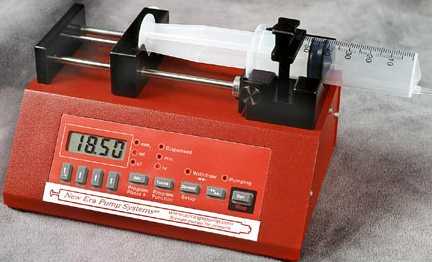

NE-1000 Programmable Single Syringe Pump
|
Description:
- Holds 1 Syringe up to 60 cc*
- Infusion rates from 0.73 µL/hr ( 1 cc syringe) to 2100 ml/hr (60 cc syringe)
- Easy-to-use keypad interface
- Space Saving Chassis: Foot print size of only 5 3/4" x 8 3/4"
Won't take up unnecessary space on your laboratory or production bench
Features:
- Fully programmable; automation capable
- Operates stand-alone or from a computer
- Infusion and withdrawal
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- Network, control, and monitor up to 100 pumps with one computer
- Worldwide power supplies available
- Motor stall detection
- Dispensing accuracy of +/-1%
- Unlimited lifetime technical support
- Two year warranty
|
Click to Enlarge
|
Example Flow Rates (NE-1000):
|
| Syringe Size
(cc) |
Maximum
Rate (mL/hr) |
Minimum Rate (µL/hr) |
| 0.5 µL |
25.49 |
0.001 |
| 1 mL |
53.09 |
0.73 |
| 3 |
192.5 |
2.646 |
| 5 |
406.1 |
5.581 |
| 10 |
600 |
8.244 |
| 20 |
975.8 |
13.41 |
| 30 |
1282 |
17.63 |
| 60 |
2120 |
29.13 |
|
|
*** Not for clinical use on humans ***
|
|
|
NE-1600 Programmable Six-Syringe Pump
|
Description:
- Holds 2, 4, or 6 syringes of up to 140 cc each
- Infusion rates from 0.568µL/hr ( 1 cc syringe) to 1337 ml/hr (60 cc syringe)
- Easy-to-use keypad interface
- Higher flow rate models available
- Pictured Syringe is for Demonstration purposes only
Features:
- Fully programmable; automation capable
- Operates stand-alone or from a computer
- Infusion and withdrawal
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- Network, control, and monitor up to 100 pumps with one computer
- Worldwide power supplies available
- Motor stall detection
- Dispensing accuracy of +/-1%
- Unlimited lifetime technical support
- Two year warranty
|
Click to Enlarge
|
Example Flow Rates (NE-1600):
|
| Syringe Size (cc) |
Maximum Rate (mL/hr) |
Minimum Rate (µL/hr) |
| 0.5 µL |
16.66 |
0.001 |
| 1 |
34.69 |
0.73 |
| 3 |
125.7 |
2.646 |
| 5 |
265.4 |
5.581 |
| 10 |
392 |
8.244 |
| 20 |
637.6 |
13.41 |
| 30 |
838 |
17.63 |
| 60 |
1385 |
29.13 |
|
|
*** Not for clinical use on humans ***
|
|
|

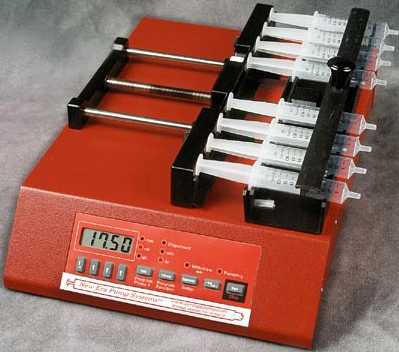

NE-1800 Programmable Eight-Syringe Pump
|
Description:
- Holds 2, 4, 6, or 8 syringes of up to 10 cc each
- Infusion rates from 0.568µL/hr ( 1 cc syringe) to 380 ml/hr (10 cc syringe)
- Easy-to-use keypad interface
- Higher flow rate models available
- Pictured Syringe is for Demonstration purposes only
Features:
- Fully programmable; automation capable
- Operates stand-alone or from a computer
- Infusion and withdrawal
- Set a single pumping rate and/or dispensing volume
- Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
- Network, control, and monitor up to 100 pumps with one computer
- Worldwide power supplies available
- Motor stall detection
- Dispensing accuracy of +/-1%
- Unlimited lifetime technical support
- Two year warranty
|
Click to Enlarge
|
Example Flow Rates (NE-1800):
|
| Syringe Size (cc) |
Maximum Rate (mL/hr) |
Minimum Rate (µL/hr) |
| 0.5 µL |
16.66 |
0.001 |
| 1 |
34.69 |
0.73 |
| 3 |
125.7 |
2.646 |
| 5 |
265.4 |
5.581 |
| 10 |
392 |
8.244 |
|
|
*** Not for clinical use on humans ***
|
|
|

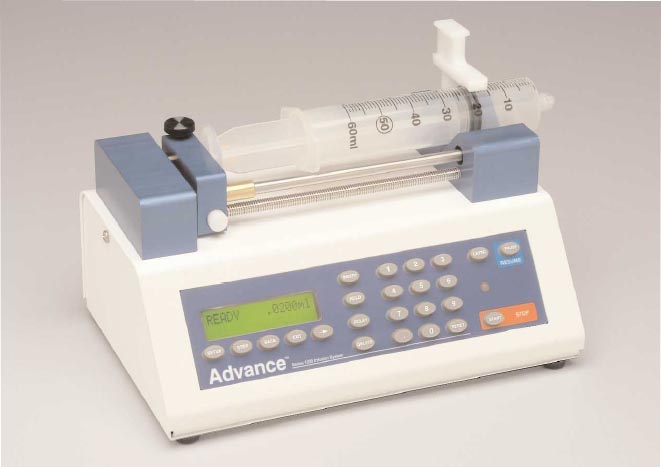

Advance Infusion Pump Series 1200
The Advance Infusion Pump Series 1200 is a simple,
accurate, affordable single syringe pump. Easily input the syringe diameter,
volume, and time into the large number keypad that no other pump on the market
has and let Advance do the rest.
|
Click to Enlarge
|
Additional Features:
-
The Advance Syringe Pump can be programmed up to 99 different steps for
variable rates and pauses in a single infusion.
-
Nonvolatile memory stores all information from a past infusion including the
steps
-
Press pause/resume key at anytime to pause or restart in the middle of an
infusion.
-
Rates anywhere from micro-liters per hour to milliliters per minute
|
| Specifications
|
| Pump Type |
Infusion |
| Max.No. Syringes |
1 |
| Syringe Size |
.5µL to 60mL |
| Linear Force |
22lbs. |
| Min Flow Rate |
> .1µL/hr |
| Max Flow Rate |
8.87mL/min |
| Accuracy |
± 3% |
| Reproducibility |
± 1% |
| Power |
9Volt DC @ 1000mA |
| Dimensions |
9.0" x 5.75" x 4.93" |
| Weight |
3.9 lbs. |
| Steps per Revolution |
400 |
|
| |

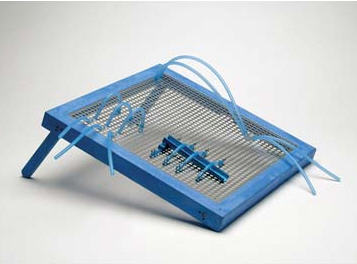

Lab Animal Infusion Table
|
|
The Advance Infusion Table
The Advance Infusion Table is the latest design in
tail infusions for rats. This unique setup allows for tail infusions lasting up
to three hours. The table has four folding legs that allow for an optional
angled display and compact storage. Positioning of the animal can be customized
using the silicone tubing and perforated table top.
|
Click to Enlarge
|
Features:
-
4 folding legs for optimal angled display and compact storage
-
Easy customization using the silicone tubing and perforated table top
-
Cage washable
Dimensions:
-
40 x 40cm (15-3/4" x 15-3/4") square table top
-
Height with legs open, 16.5cm (6-1/2")
|
|
|
