BeadBug™ Benchtop Homogenizer
The BeadBug™ is a high energy benchtop homogenizer that sets the performance standard for personal sized cell disruption and lysis instruments.
Simultaneous homogenization of up to 3 samples takes place (often within 45 seconds) inside the disposable 2ml screw cap microtubes. The
optimized mixing motion causes rapid cell disruption through constant high velocity impact from the hardened micro-beads chosen specifically
for your sample type.
Developed for samples too tough to be homogenized in a common lab vortexer, the BeadBug provides a convenient and economical alternative
to the traditional, over-priced homogenizers on the market today. With up to three tube capacity and a foot print of just 7 x 8", the BeadBug is
the ideal homogenizing instrument for low to medium throughput laboratories.
- Extremely powerful mixing for lysis, grinding or homogenization
- Faster and more effective than tissue grinders
- Mix 1, 2 or 3 tubes simultaneously
- Extremely compact, less than 7" wide
- Eliminates the cross contamination associated with hand held homogenizers
SPECIFICATIONS
| Speed Range: |
2700 to 4000rpm |
|
Capacity:
|
Touch or continuuous |
| Timer: |
3 sec. to 3 min.
|
| Operating Temp. Range: |
+4 to +65°C |
Dimensions:
(w x d x h) |
(w x d x h) 6.9 x 8.3 x 5.3 in.
17 x 21 x 13.5 cm
|
| Weight: |
5 lbs / 2.2kg |
| Warranty: |
2 Years |
|
| D1030 |
BeadBug™ Microtube homogenizer, 115V |
$786.48 |
|
| D1030-E |
BeadBug™ Microtube homogenizer, 230V |
$786.48 |
|
Prefilled Tube Kits,
Pack of 50 (non-skirted with caps)
|
| D1031-01 |
Prefilled 2.0ml tubes, Silica (Glass) Beads, 0.1mm Acid Washed |
$101.56 |
|
| D1031-05 |
Prefilled 2.0ml tubes, Silica (Glass) Beads, 0.5mm Acid Washed |
$101.56 |
|
| D1031-10 |
Prefilled 2.0ml tubes, Silica (Glass) Beads, 0.1mm Acid Washed |
$101.56 |
|
| D1032-01 |
Prefilled 2.0ml tubes, Zirconium Beads, 0.1mm Triple-Pure - High Impact |
$141.69 |
|
| D1032-05 |
Prefilled 2.0ml tubes, Zirconium Beads, 0.5mm Triple-Pure - High Impact |
$141.69 |
|
| D1032-10 |
Prefilled 2.0ml tubes, Zirconium Beads, 1.0mm Triple-Pure - High Impact |
$141.69 |
|
| D1032-15 |
Prefilled 2.0ml tubes, Zirconium Beads, 1.5mm Triple-Pure - High Impact |
$141.69 |
|
| D1032-30 |
Prefilled 2.0ml tubes, Zirconium Beads, 3.0mm Triple-Pure - High Impact |
$141.69 |
|
| D1032-SK |
Triple-Pure Starter Kit, 10 each of 0.1, 0.5, 1.0, 1.5 and 3.0mm |
$141.69 |
|
| D1033-28 |
Prefilled 2.0ml tubes, Stainless Steel, 2.8mm Acid Washed |
$141.69 |
|
| D1031-T20 |
Tubes (empty) pack of 1000 with caps and sealing ring |
$150.21 |
|
| D1031-T21 |
Tubes (empty) pack of 50 with caps and sealing ring |
$37.66 |
|
|
|

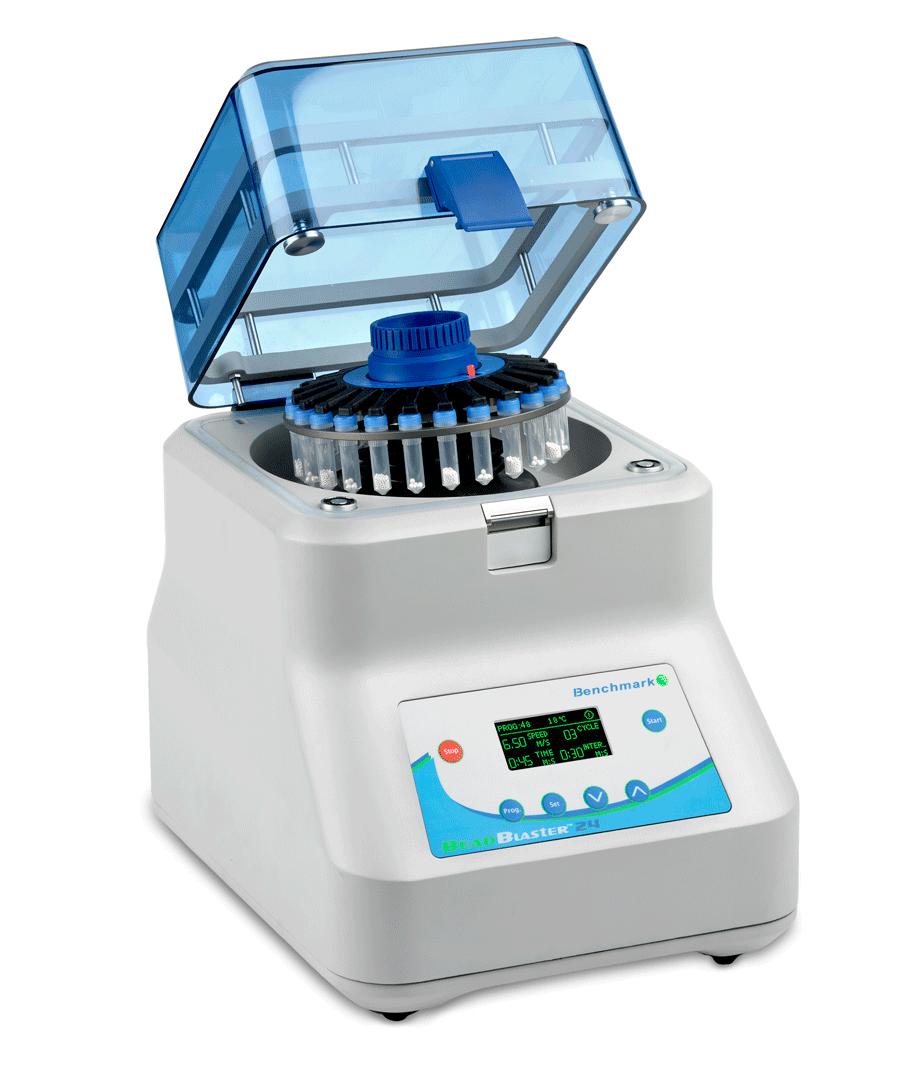

The BeadBlaster™ 24 Microtube Homogenizer
The BeadBlaster™ 24 completely lyses, grinds and homogenizes
a broad variety of biological samples. Even the most difficult and
resistant samples are fully homogenized, often in 35 seconds or
less.
The stainless steel tube carrier subjects up to 24 samples to an
optimized, high speed, 3D motion, producing high energy impacts
between the samples and micro-beads to release cellular contents.
After homogenization, samples can be centrifuged and the
supernatant collected for further processing.
Operating parameters for the BeadBlaster 24 are set and displayed
digitally. To protect fragile, heat sensitive samples, the unit can be
programmed to operate in shortened consecutive cycles with a rest
period in between. Up to 50 such programs can be stored in memory
and recalled for future use. A transparent lid allows for visualization
of samples, and features a mechanical lid lock that prevents opening
owhen the BeadBlaster is in operation. A brushless motor reduces
motor noise and provides maintenance free operation.
Benchmark offers an assortment of prefilled tube kits for a variety
of sample types. The popular Triple-Pure™ kits include acid washed,
heat treated, zirconium beads. The beads are tested to be free of
nucleases, making them ideal for molecular biology applications.
A convenient starter kit (D1032-SK) is available to accommodate
a broad range of sample types and optimize applications.
- Fast, efficient homogenization in about 35 seconds
- For all sample types, from soft tissue to bone
- Mix up to 24 tubes simultaneously
- Sealed 2.0ml tubes - eliminates cross contamination
SPECIFICATIONS
| Speed Range: |
4.0 to 7.0 m/s (0.05 m/s increments)
|
| Capacity: |
24 x 2.0ml |
| Cycle Time: |
1 to 90 sec. (up to 90 sec.) |
| Pause between cycles: |
0 to 2 min. (1 sec. increments)
|
| Max, cycles per program: |
10 |
| Program Memorys: |
up to 50 |
| Accel. / Decel. Time: |
<2 sec. / <2 sec. |
| Noise Level: |
<68 db |
| Dimensions: |
11 x 14.2 x 15.2 in.
28 x 36 x 38.5 cm |
| Weight: |
55 lbs / 25kg |
| Electrical: |
100 to 240V, 50-60Hz |
| Warranty: |
2 Years |
|
| D2400 |
BeadBlaster Microtube Homogenizer, 115V
|
$7,544.30 |
|
| D2400-E |
BeadBlaster Microtube Homogenizer, 230V |
$7,544.30 |
|
|
|

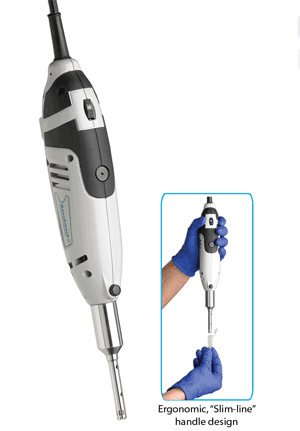

D1000 Handheld Homogenizer
Benchmark's new handheld homogenizer, the D1000, is designed to rapidly homogenize, emulsify, suspend and disrupt biological samples. Ideal for use with microtubes, the homogenizer works well with samples from 0.1ml to 250ml (depending upon the generator probe used).
The D1000 is a rotor stator homogenizer, and works by drawing the sample, in liquid, into the generator probe with the variable speed rotor, and then forcing it out through
the slots in the stator. This achieves mechanical shearing of the sample. As the sample is repeatedly drawn up and forced through the stator, additional shearing takes place.
Most samples are completely homogenized in 30 seconds are less. A powerful, 130W motor drives the rotor at speeds from 8,500 to 30,000 rpm. Speed is adjustable in six
steps to meet sample processing needs. A separate on/off switch allows the homogenizer to be left at the appropriate setting.
Generator probes are available in four sizes. The 5mm and 7mm diameter have a 50mm length for use with samples in microbtubes. The 10mm x 115mm is ideal
for use with 15 and 50ml tubes and 14mm x 130 mm, for 50ml tubes and vessels up to 250ml. The unit is supplied with one each of the 5mm and 7mm generator probes.
All the generator probes are made of stainless steel and can be sterilized by autoclaving.
- Homogenize most samples in under 30 seconds
- For volumes from 100µl to 250ml
- Supplied with both 5mm & 7mm generator probes
SPECIFICATIONS
| Speed: |
500 to 2500 rpm |
| Capacity: |
6 x 250ml |
| Orbit: |
3.6mm
|
| Timer: |
1 min. to 99 hr 59min. |
| Platform Dimensions: |
12 x 7 in. / 30 x 17.8 cm
|
Dimensions:
(w x d x h) |
15 x 9.2 x 16.5 in.
38.5 x 23.5 x 42cm
|
| Weight: |
13kg / 29lb
|
| Electrical: |
100 to 240V, 50-60 Hz |
| Warranty: |
2 Years |
|
| D1000 |
Handheld Homogenizer, with 5 & 7mm generator probes, 115V |
$1,018.06 |
|
| D1000-E |
Handheld Homogenizer, with 5 & 7mm generator probes, 230V |
$1,018.06 |
|

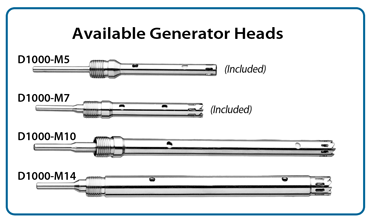

Optional Generator Probes
|
| D1000-M10 |
10 x 115mm saw tooth, for 15 and 50ml tubes |
$311.30 |
|
| D1000-M14 |
14 x 130mm saw tooth, for 50 to 250ml |
$930.58 |
|
| D1000-M5 |
5 x 50mm flat bottom, for microtubes, 5pk. |
$522.65 |
|
| D1000-M7 |
7 x 50mm saw tooth, for microtubes, 5 pk |
$554.54 |
|
| D1000-ST |
Stand for D1000 |
$416.98 |
|
