Veinlites » Veinlite Fiber Optic

Veinlite ^®

The fiber optic Veinlite has quickly become the gold standard for imaging and mapping varicose vein prior to treatment. Its bright 150 watts halogen light and side-transillumination method provides uniform transillumination of the skin anywhere on the body. A large C-shaped ring shows large areas of superficial venous network associated with spider veins and telangiectesia.

Veinlite Applications

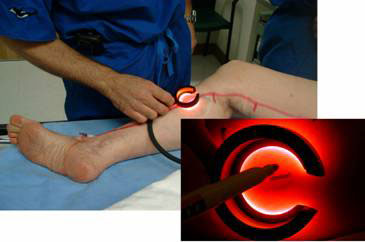

Mapping of varicose veins
Finding reticular feeder veins
Imaging of the network of varicose veins prior to treatment.

Watch Streamline Video

Patented Side-Transillumination* Technology Side-Transillumination provides uniform illumination and visualization of unprecedented clarity. Light generated by a halogen bulb travels though a high-quality fiber into the Veinlite ring, where it is directed into the skin at an angle so that it is concentrated in a bright spot under the skin. The bright spot behaves like a virtual light source below the skin that transilluminates the open area within the ring. Superficial blood vessels are seen with high clarity and networks of varicose veins can be examined in detail.

The Components

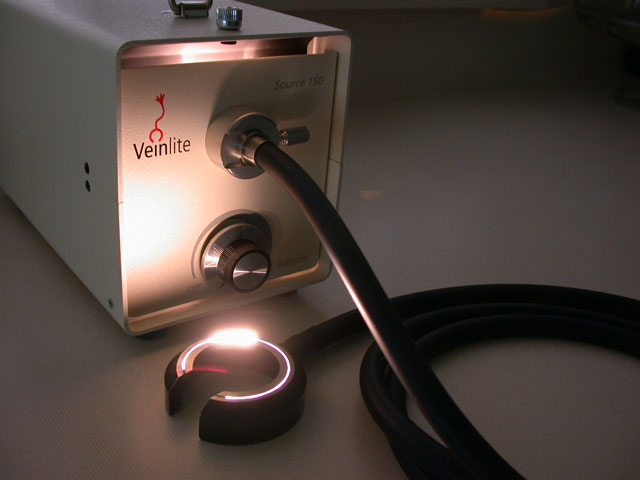

The Veinlite comprises a halogen light source, a high-quality fiber optic cable, and a patented ring illuminator for side-transillumination. The light source uses a 150 watts halogen bulb and has a potentiometer allowing you to adjust to the desired illumination intensity.

Guiding the Light
The halogen light light is channeled through a flexible fiber optic guide to the specially designed light ring where it is directed into the skin with minimal light loss.

Veinlite Specifications:

Light Ring & Source	Value
Ring Top Diameter (outer)	62 mm
Ring Top Diameter (inner)	46 mm
Ring Bottom Diameter (inner)	36 mm
Fiber Taper Angle	45 Degrees
Light Window Width	0.5 mm
Fiber Optic Length	6 feet
Light Source Power	150 Watts
Power Output Adjust	Rheostat Continuously Variable
Input Voltage	110 volts AC
Approximate Color Temperature	3250 degrees (At Max. Level)

** Call us or add to cart to see best price **

VL	Veinlite Light source unit with large ring illuminator and fiberoptic cable	Product Application Sclerotherapy, varicose vein treatment and deeper venous access	$1,016.00
VS	Veinlite P Light source unit with small ring illuminator and fiberoptic cable	Product Application Pediatric and superficial venous access	$1,016.00
VLS	Veinlite VLS Light source unit with large and small ring illuminators and fiberoptic cables	Product Application Venous access interventional radiology and clinical research	$1,519.00

Veinlite Accessories ** Call us or add to cart to see best price **

RIL	Veinlite Part, Large Ring Only	$598.00
RIS	Veinlite Part, Small Ring Only	$598.00
FO-LS150	150 Watt Fiberoptic light source unit	$598.00
HB-LS150	150W EKE Halogen light bulb	$29.00
