ADC 5210 - Standard 2.5v Diagnostic Set
Competitively priced 2.5v Diagnostic Set in a fitted case.
The ADC 2.5v diagnostic set features:
-
Ophthalmoscope head with lens wheel features 25 corrective lenses from –20 to
+20 diopters
-
Otoscope head with removable 4x magnifying lens, and insufflator fitting
-
Bayonet head locking mounts for secure connection to the battery handle
-
"C" cell powered battery handle with rheostatic on/off switch
-
Auto-clavable, polypropylene ear specula in 2.5mm, 3.5mm and 4.5mm sizes
-
Adapter to allow use with Welch Allyn or compatible disposable specula
-
Complete in zippered case with fitted foam insert that is scuff and scratch
resistant and cleans easily
-
Weighs 20 oz.
-
Inspected and packaged in the U.S.A. from foreign components
-
Batteries NOT included
|
|
|
ADC 5215 - Complete 2.5v Otoscope/Ophthalmoscope
Instrument Set
A full featured 2.5v set with 5 different instruments in a fitted case.
The Complete Set Features:
-
Bayonet locking mounts for each instrument head to allow secure connection to
the battery handle
-
"C" cell powered, satin finish chrome-plated battery handle with knurled finish
-
Rheostatic on/off switch
-
Complete in zippered case with fitted foam insert that is scuff and scratch
resistant and cleans easily
-
Weighs 231/2 oz
-
Inspected and packaged in the U.S.A. from foreign components
-
Batteries NOT included
Otoscope
-
Chrome-plated Otoscope head with removable 4x magnifying lens, and insufflator
fitting
-
Auto-clavable, polypropylene ear specula in 2.5mm, 3.5mm, and 4.5mm sizes
-
Adapter to allow use with Welch Allyn or compatible disposable specula
-
Nasal speculum adapter with manual screw opening for instrumentation connects
to the otoscope head
Ophthalmoscope
-
Ophthalmoscope head with lens wheel featuring 25 corrective lenses from –25 to
+40 diopters
Bent Arm Illuminator
-
Chrome-plated bent arm larynx and nasopharynx illuminator for lighting the oral
cavity and pharyngeal area
-
One 3.0mm and one 4.0mm mirror with integral tongue depressor holder that
attaches to the illuminator
-
One tongue depressor attachment for the illuminator
-
One disposable tongue depressor adapter for the illuminator
|
|

Pocket Otoscope Set - 5111

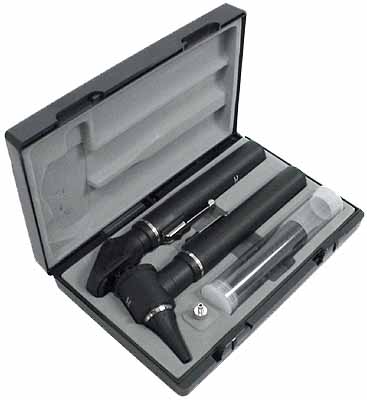

Otoscope/Ophthalmoscope Pocket Set - 5110
|
ADC 5110,5111,5112 - Otoscope/Ophthalmoscope Pocket
Instruments
Full featured pocket otoscope and ophthalmoscope that sacrifice nothing but
size.
Pocket Otoscope features:
-
2.5v halogen light source for true tissue color and long lasting lamp
performance
-
Fiberoptics for cool, obstruction free light transmission
-
Wide angle, removable 2.5x viewing lens permits instrumentation
-
Sealed system with included insufflator fitting for pneumatic otoscopy
-
Otoscope head made from polymid - an impact resistant space age thermoplastic
-
Welch Allyn disposable polypropylene ear specula in 2.5mm and 4.0mm sizes are
convenient, safe, and economical
-
“AA” metal battery handle interchanges with pocket Ophthalmoscope
-
Pocket clip with integral on/off slide switch for ambidextrous use
-
Complete instrument includes insufflator fitting and tube of 5 each 2.5mm and
4.0mm specula
-
Lifetime Quality Performance Guarantee on optics
Pocket Ophthalmoscope features:
-
2.5v halogen light source for true tissue color and long lasting lamp
performance
-
5 aperture selections (small aperture, large aperture, fixation aperture,
semicircle aperture, and red-free filter)
-
17 lenses from -20 to +20 diopters for better resolution
-
Illuminated dial
-
Silicon coated protection of glass components
-
Built-in lens dust cover
-
Rubber brow rest prevents scratching of eyeglasses
-
Ophthalmoscope head made from polymid - an impact resistant, space-age
thermoplastic
-
“AA” metal battery handle interchanges with pocket Otoscope
-
Pocket clip with integral on/off slide switch for ambidextrous use
-
Lifetime Quality Performance Guarantee on optics
|
|
|
ADC 5211 - Standard & Veterinary Otoscope
An affordable otoscope that offers high quality optics and workmanship.
The 5211 series features:
-
German 2.5V lamp for bright illumination
-
Bayonet locking otoscope head
-
Removable 4x magnifying lens
-
Rheostatic on/off switch
-
Autoclavable, polypropylene ear specula in sizes 2.5mm, 3.5mm, and 4.5mm
-
Veterinary model includes 4mm, 5mm, and 7mm specula sizes
-
Knurled brass handle with a beautiful satin finish
-
Compact instrument measures just under 71/2” and weighs approximately 7 oz.
-
Powered by 2 “C” cell batteries (not included)
-
Comes with zippered leatherette storage pouch that holds the otoscope and
included speculas
-
Inspected and packaged in the U.S.A. from foreign components
-
One Year Quality Performance Guarantee
|
|
